Dual 28 Vdc brushless motor

Thursday, November 21, 2024

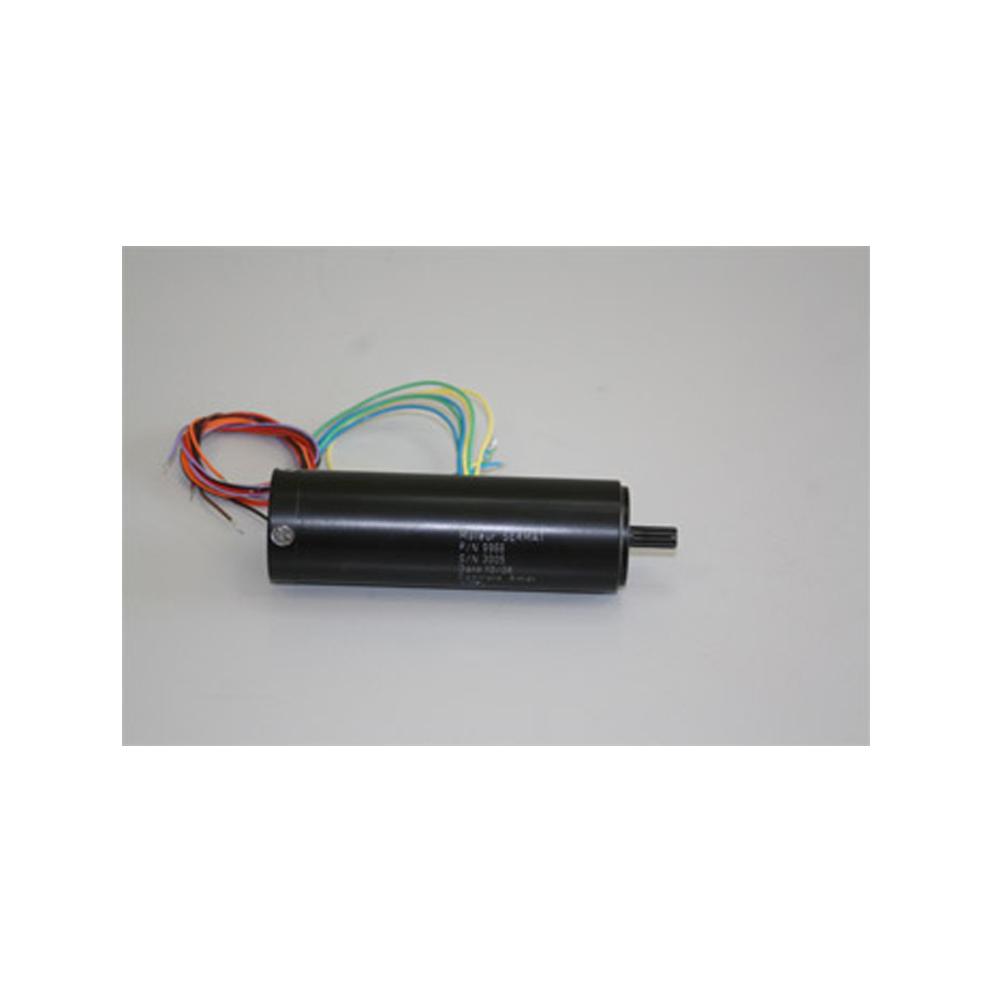

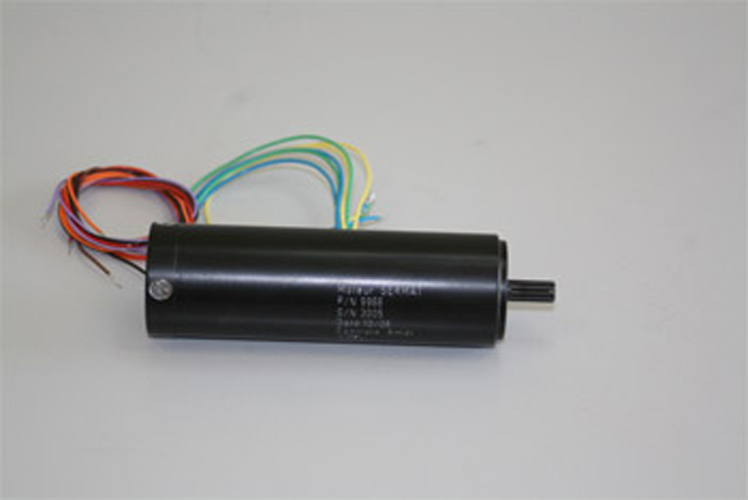

Electrically dual 28 Vdc brushless motor, 80 watts for Rudder Trim Actuator.
Brushless motor with 2 stators,
2 X 3 Hall Effect sensors,
Dual rotor with permanent magnets.
Application: medium range aircraft.
Reference 9966

Technical specifications

U = 28 Vdc
Current: 2 A
Speed: 9000 rpm
Weight: 0.25 kg
Dimensions: 88 x Ø 28
Ambient temperature: -55 to +90°C
Torque: 0.025 Nm
