5 kW brushless motor

Thursday, November 21, 2024

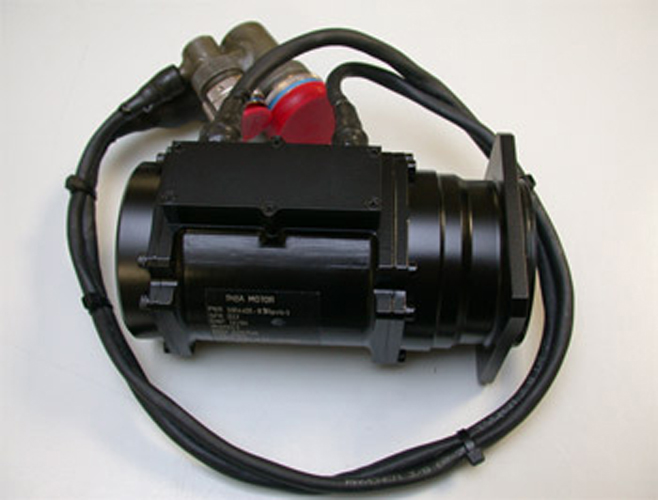

270 Vdc, 5 kWatts brushless motor for THSA.
Brushless motor with tachogenerator and two mechanical brakes.
Application: long range aircraft last generation.
Reference 9999

Technical specifications

U = 270 Vdc
Current: 17AC (on 115 VAC lines)
Speed: 12000 rpm
Weight: 5 kg
Dimensions: 180 x 95 x 105
Ambient temperature: -55 to +90°C
Torque: 3.3 Nm
Brake static friction torque: 25 Nm
Sealed motor
