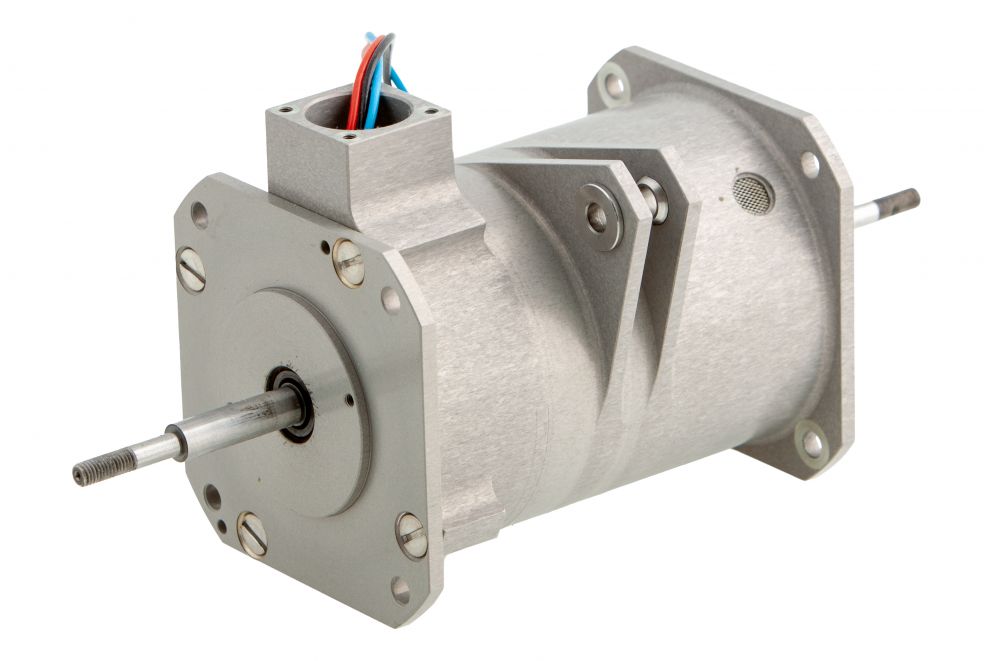

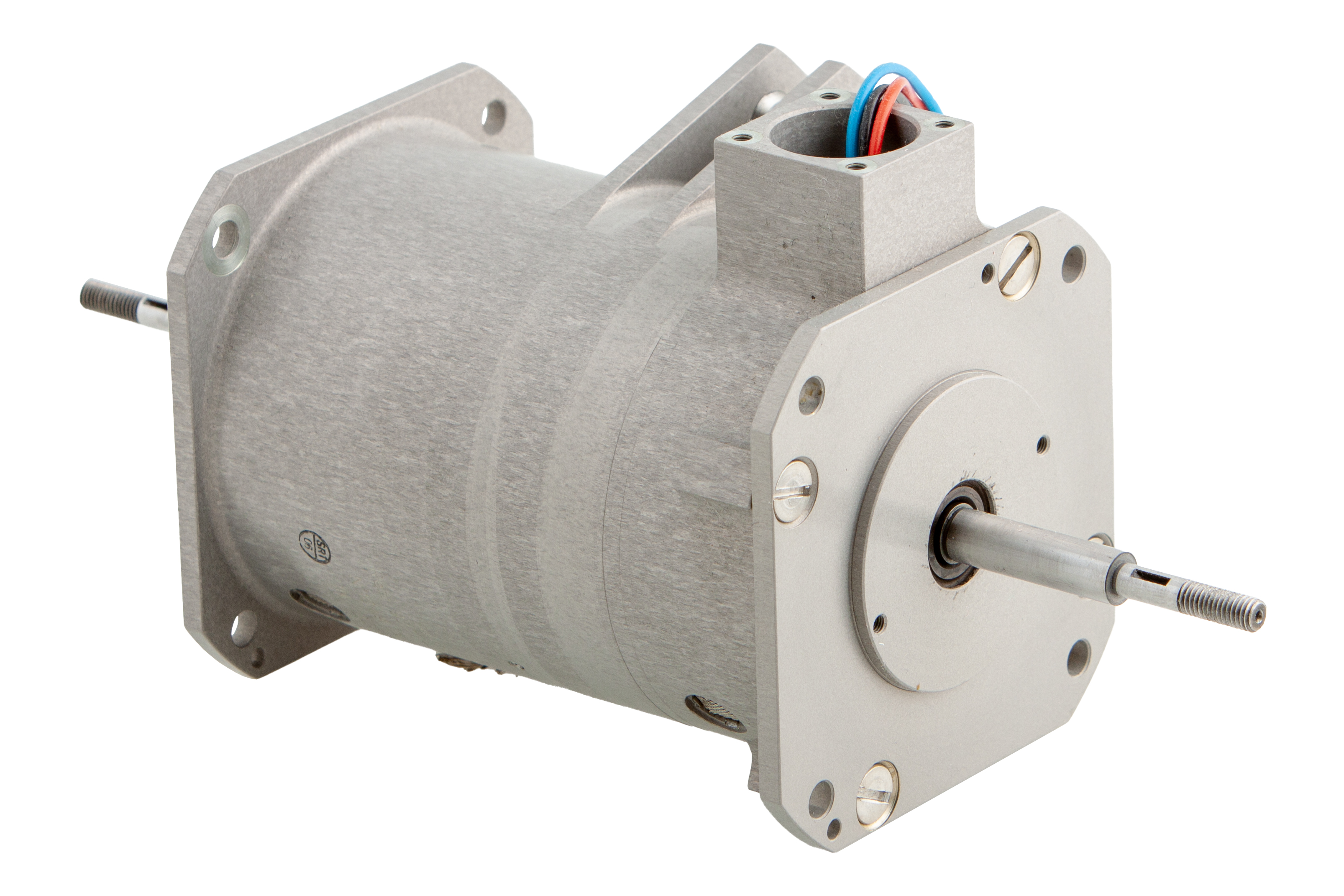

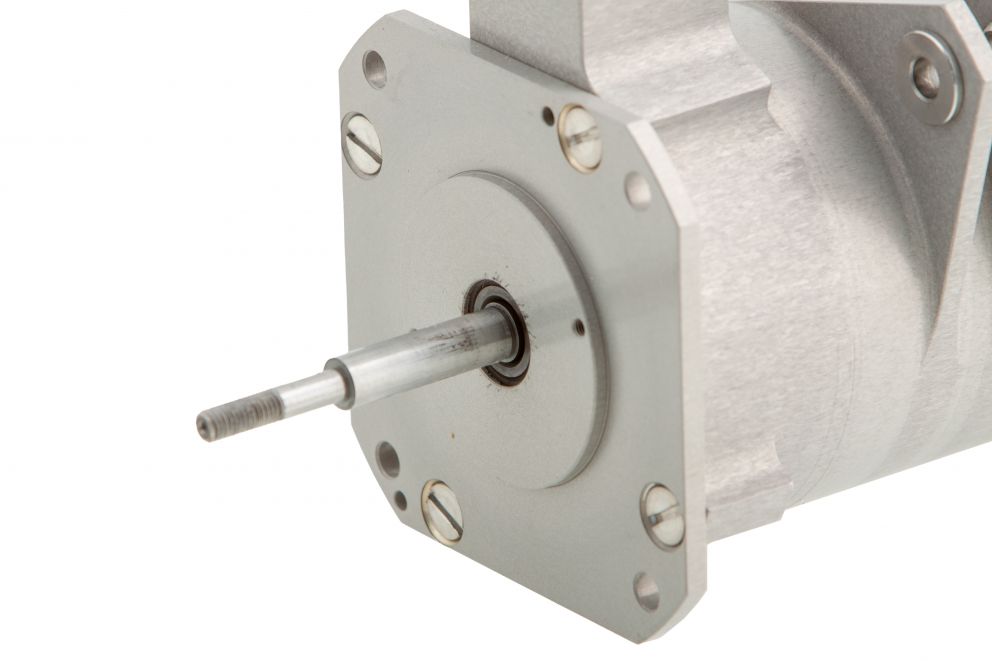

Speed-controlled brushless motor

Thursday, November 21, 2024
Brushless motor with integrated electronics for kerozen pump.
Speed control and feedback, current limitation.
Reference 9977

Technical specifications

U = 270 Vdc
Current: 3 A
Speed: 10000 rpm
Weight: 1.66 kg
Dimensions: 153 x Ø 70
Ambient temperature: -55 to +90°C
Speed controlled from 440 to 10000 rpm

Maximum performances:
Torque: 0.7 Nm
Speed: 10000 rpm

Sealed unit

Applications
