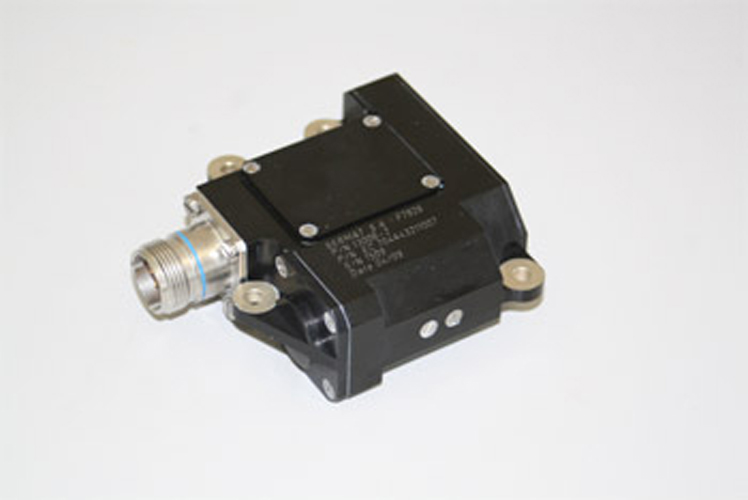

Rotary helicopter valve actuator

Tuesday, October 22, 2024
Rotary 28 Vdc actuator.
Reference 13006-2

Technical specifications

U = 28 Vdc
Speed: 10°/s
Weight: 0.265 kg
Dimensions: 84 x 72 x 30
Stroke: +/-50°
Torque limiter: 2 Nm
Nominal torque: 0.6 Nm
Irreversibility: 2.5 Nm
Temperature range: -55 to +71°C
Sealed unit
Dual channel rotary actuator controlled in position with brushless motor and electronics Dual channel rotary actuator controlled in position with brushless motor and electronics Rotary actuator with brush motor Door locking actuator Flight control actuator Helicopter valve actuator Pilot seat actuator Fuel valve actuator
