Rotary fuel valve actuator

Tuesday, December 3, 2024

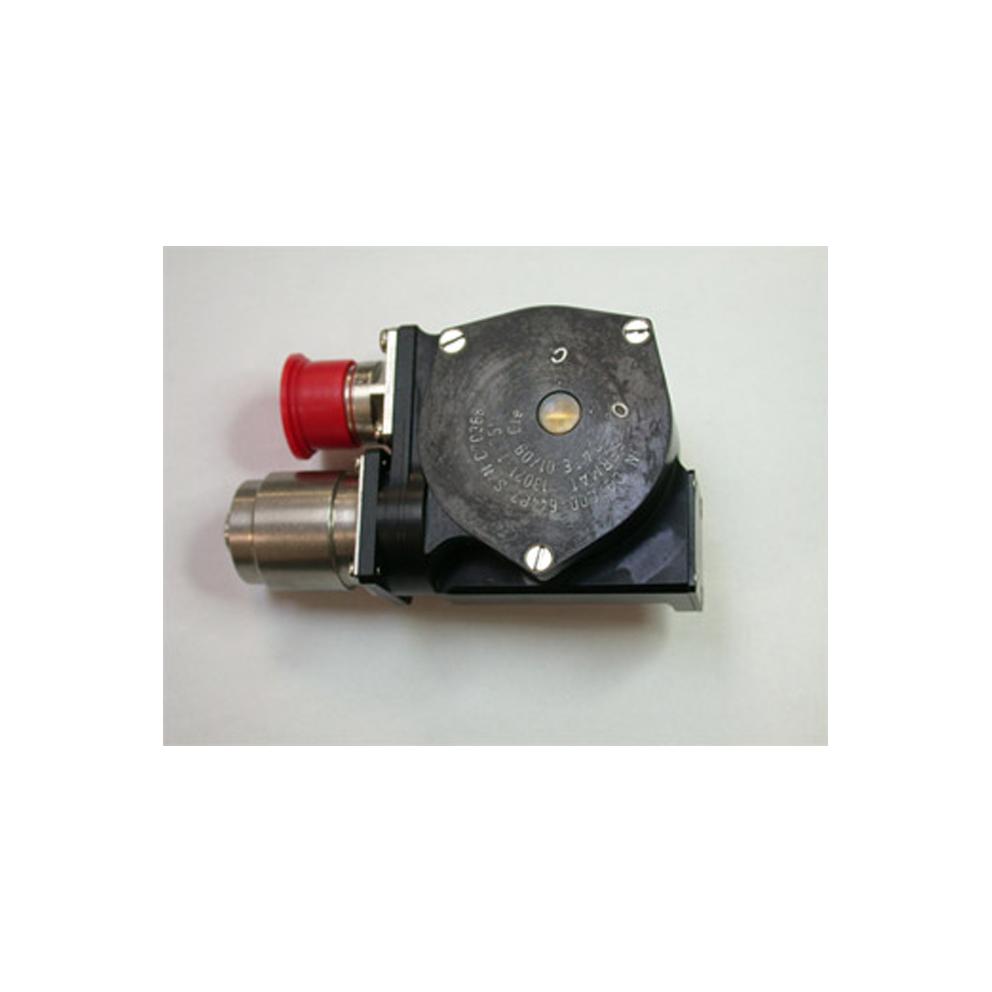

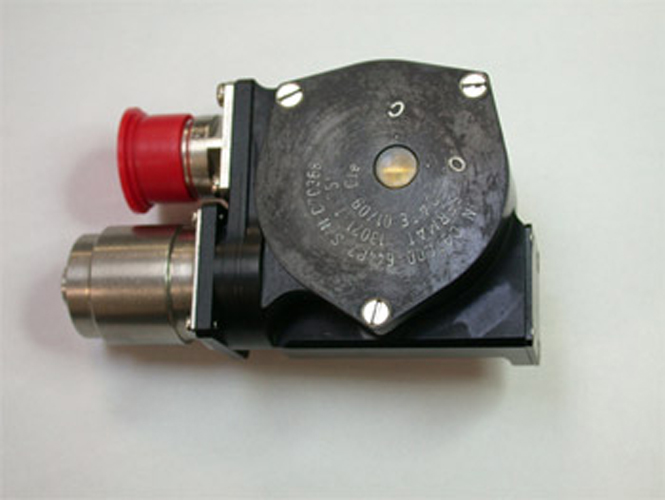

Rotary actuator 0-90° for fuel valve, with brush DC motor and end of stroke switches.
Reference 13021-1

Technical specifications

U = 28 Vdc
Current: 0.3 A
Speed: 45°/s
Torque: 3 Nm
Max torque: 10Nm
Weight: 0.3 kg
Dimensions: 102 x 42 x 58
Ambient temperature: -55 to +90°C
Sealed unit
