Electric linear actuator for shutter control

Saturday, January 18, 2025

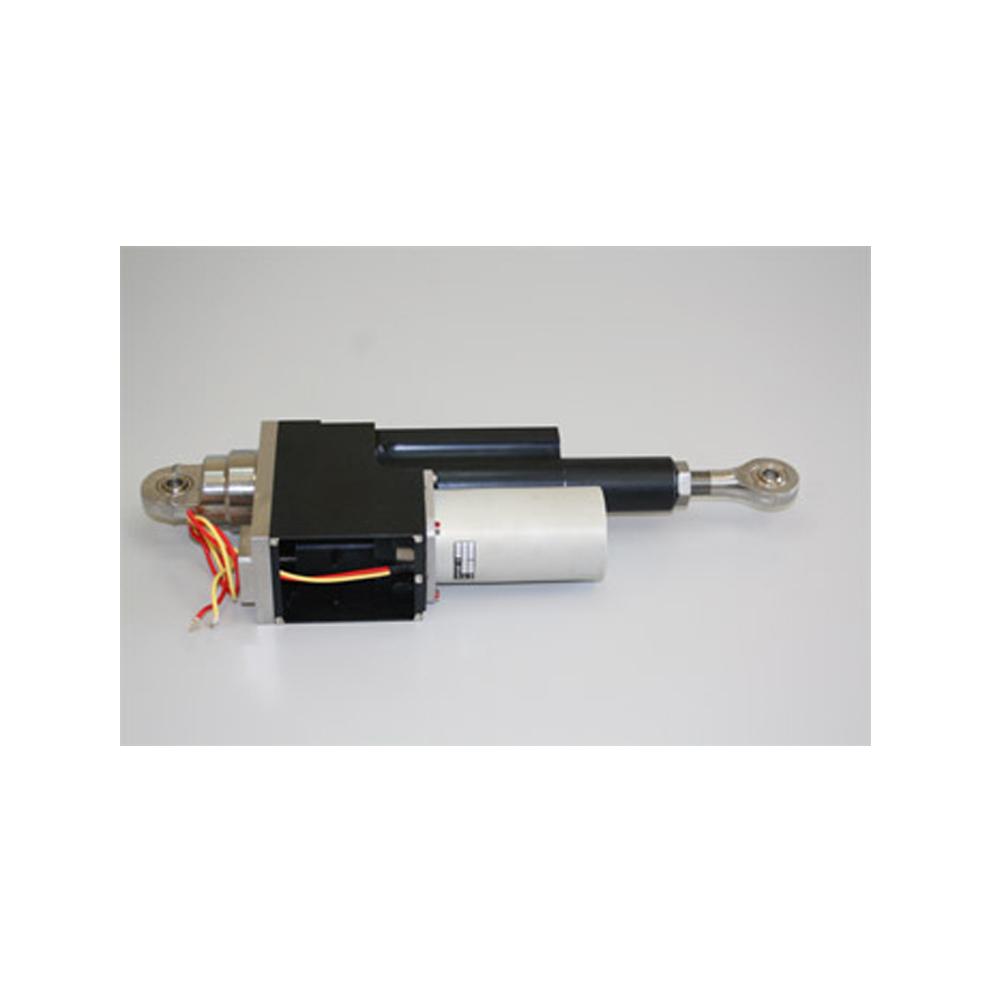

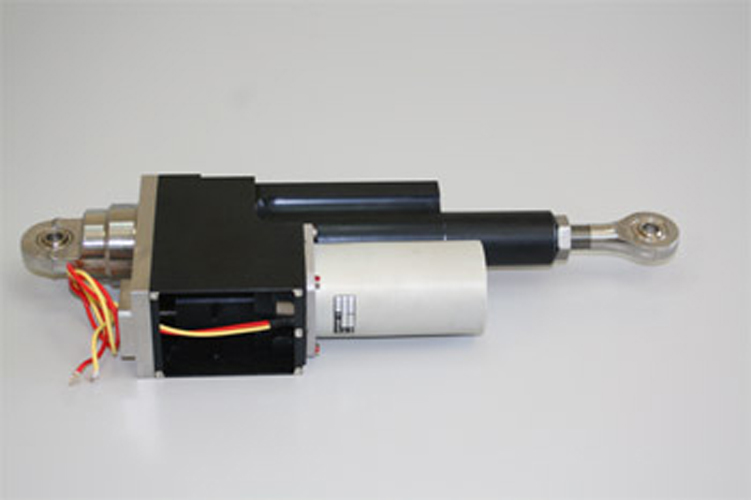

Linear actuator with brush motor including torque limiter, thermal protection, position feedback.
Application - flap system.
Reference 12009

Technical specifications

U = 28 Vdc
Current: 15 amps
Speed: 7 mm/s
Load: 1100 daN
Stroke: 94 mm
Weight: 3.75 kg
Dimensions: 350 x 123 x 51
Ambient temperature: -55 to +71°C
Sealed unit
