Electric linear actuator for door opening

Thursday, November 21, 2024

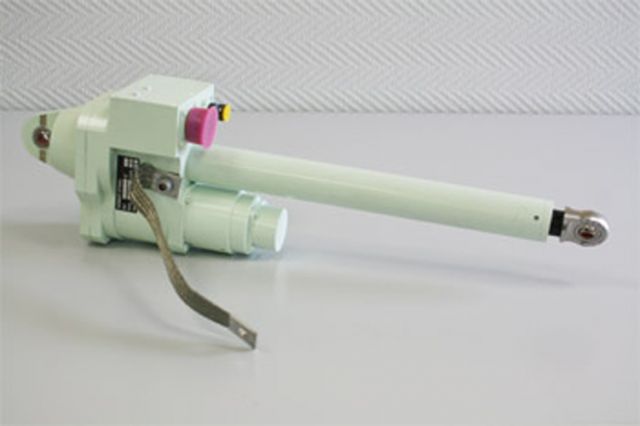

Linear actuator with brush motor and integrated electronics for military vehicle including: torque limiter, manual override.
Reference 12021-2

Technical specifications

U = 28Vdc
Weight: 5 kg
Dimensions: 520 x 140 x 90
Ambient temperature: -40 to +70°C
Stroke: 310 mm

Load: 343 daN
Current: 18 amps
Speed: 30 mm/s
Load: 845 daN
Current: 40 amps
Sealed unit
