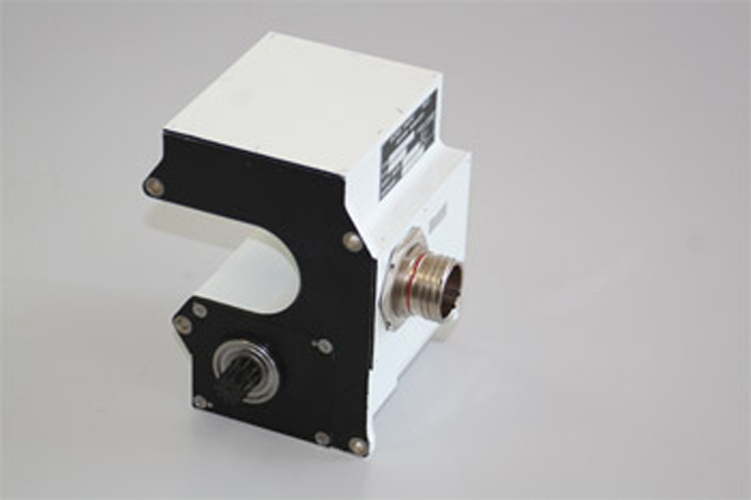

Geared motor for aircraft door opening

Tuesday, October 22, 2024
Motoreducer with brushless motor and integrated electronics.
Functions: Motoreducer to open the aircraft door and electrical damper function when the door is falling down.
Application: business jet.
Reference 14007-3

Technical specifications

U = 28 Vdc
Current: 10 amps
Speed: 600 rpm
Weight: 1.6 kg
Dimensions: 95 x 90 x 125
Ambient temperature: -40 to +70°C
Torque: 3 Nm
Sealed unit
