Limited travel torque motor

Thursday, November 21, 2024

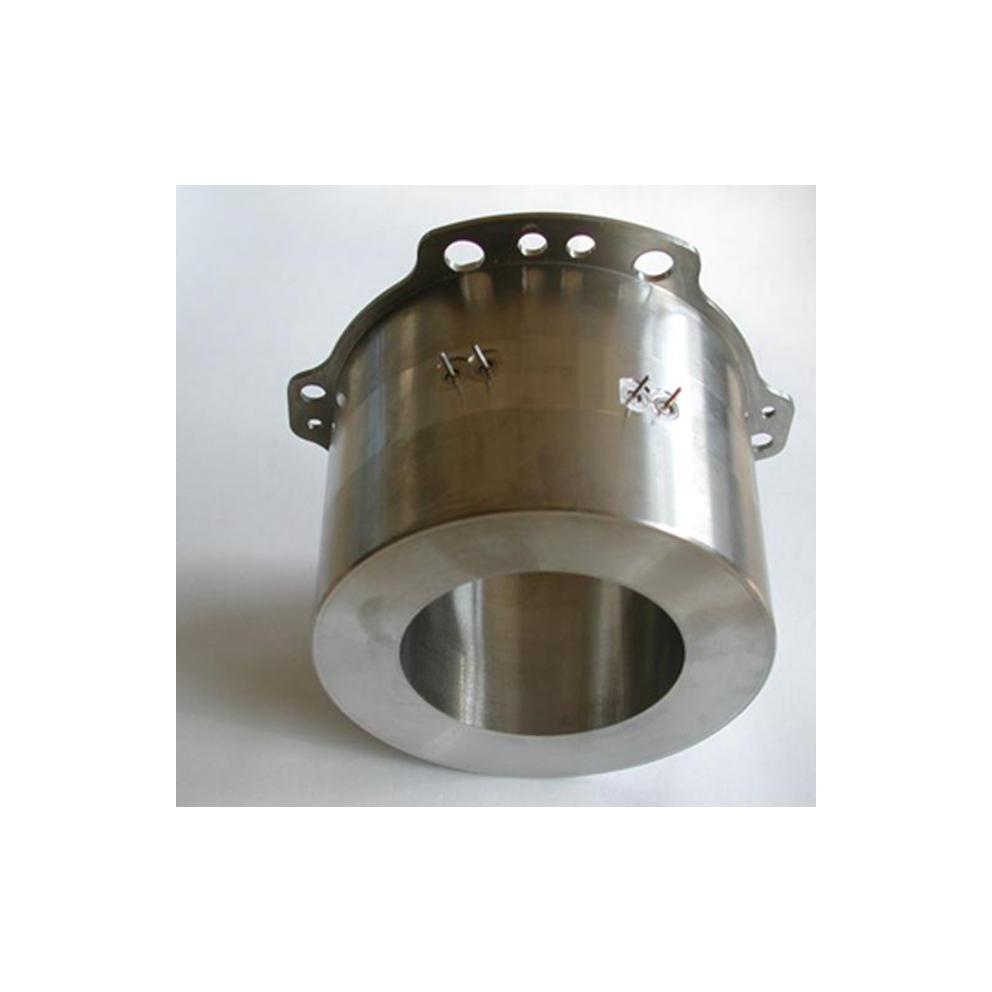

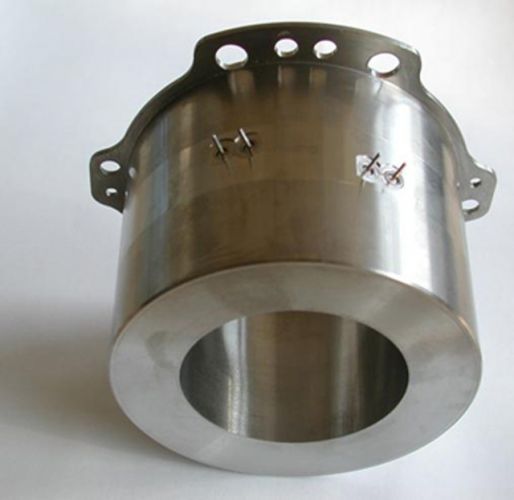

Torque motor. Dual limited angle brushless DC torque motor.
Hermetically sealed by laser welding
Titanium housing
Helicopter flight control system
Reference 9787

Technical specifications

Weight = 1.32 kg
Dia. Ext. = 87 mm
Dia. Int. = 53 mm
Airgap = 0.65 mm
L = 65 mm
Kt = 0.877 Nm/A (each coil)
Operating angle = +/- 10°
-40°C < Temp < +120°C
Dual torque motor
