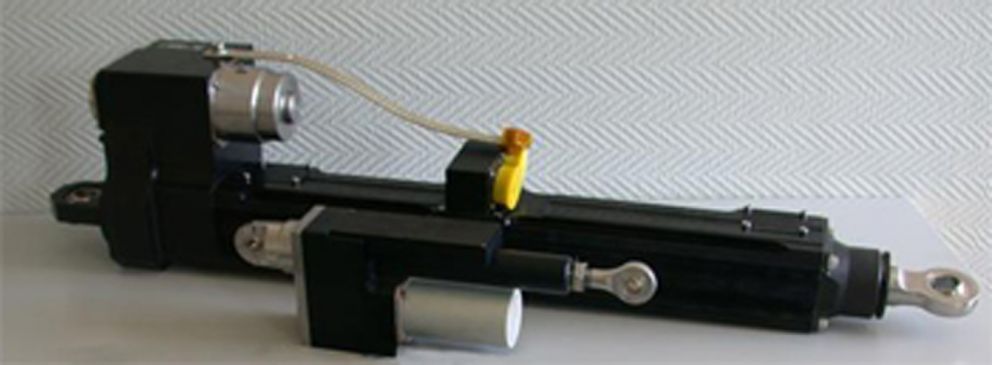

Electric linear actuator with brush motor

Thursday, November 21, 2024

Brush motor driven by built-in electronics.
Stop by electrodynamic braking on end of stroke switches.

Technical specifications

(For the longest actuator)

U = 28 Vdc
Current: 55 A
Speed: 30 mm/s

Load: 10000 N
Stroke: 420 mm
Irreversibility: 52000 N
Weight: 25 kg
Dimensions: 840 x 90 x 200
Ambient temperature: -40 to +70°C
Sealed unit
